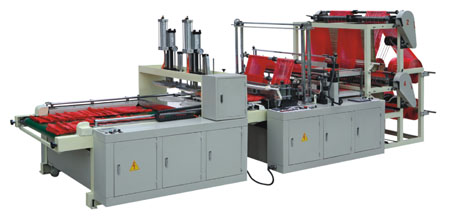

Automatic four-line bottom sealing bag-making machine

USe   This machine is suitable for making plastic vest bags of natural colour and colour-printed. It adopts advanced photoelectric eyes tracking which makes the printing pattern position accurate without error, the sealing synchronous with the heat-cutting without any putting force and the seated bottom be firm and beautiful. Equipped with variable frequency speed regulating motor, it has other functions such as energy-saving,over voltage and over current protection, etc, And equipped with automatic counting device, it can arbitrarily set the binding quantity and can automatically discharge and reset after the bags are piled to the set quantity.   Main technical parameters 型号 Model QLFR-500 QLFR-700 最大封切宽封切长度 Max. Seating and cutting width Sealing and cutting length 500mm 100-1000mm 700mm 100-1000mm 封切厚度长度误差 Sealing and cutting thickness Error in length 0.005-0.50mm ±lmm 0.005-0.50mm ±lmm 制袋速度主电机功率 Bag-making speed Power of main motor 40-120pcs/min 0.75kw 40-120pcs/min 1.1kw 加热功率总功率 Heating power Total power 2kw 3kw 2.4kw 3.8kw 机器重量外形尺寸 Weight of machine Overall dimensions(LxWxH) 800kg 2600xl100xl500mm 900kg 2600xl300xl500mm 外观和数据如有变化，恕不另行通知 Technical Parameters are subiect to change without Drior noticel
