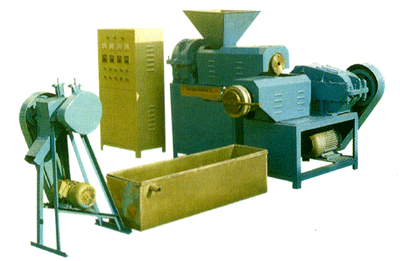

It's used for processing recycling clean woven bag,plastic film or another broken old plastic to make them into plastic grains that will be used as raw material again.The screw and cylinder of this machine are made of 38CrMoAlA and done treatment of nitrogenation.Automatic heating control is applied at cylinder and die.
Main technical parameters：
|
Model type |
SJ-90 |
SJ-100 |
SJ-110 |
SJ-120 |
|
Diameter of Screw Stem |
Ф85mm |
Ф95mm |
Ф105mm |
Ф110mm |
|
Major Diameter Ratio of Screw Stem |
20:1-22:1(L/D) |
20:1-22:1(L/D) |
20:1-22:1(L/D) |
20:1-22:1(L/D) |
|
Rational Speed of Screw Stem |
10-110rpm |
10-110rpm |
10-110rpm |
10-110rpm |
|
Main Motor Power |
22KW |
30KW |
37KW |
45KW |
|
Output |
60kg/h |
90kg/h |
110kg/h |
130kg/h |
|
Machine Weight |
2t |
2.1t |
2.2t |
2.5t |
|
Overall Diamentions
(L×W×H) |
5800×1250×1100 |
5900×1300×1200 |
6000×1350×1300 |
6200×1400×1350 |
|
Diameter of Screw Stem |
Ф120mm |
|
Major Diameter Ratio of Screw Stem |
8:1 (L/D) |
|
Rational Speed of Screw Stem |
10-110rpm |
|
Main Motor Power |
15KW |
|
Machine Weight |
0.6t |
|
Overall Diamentions
(L×W×H) |
1700×680×1200mm |
Design and specifications are subject to change without notice
Note: the user should place an order with us super-huge machine set.
