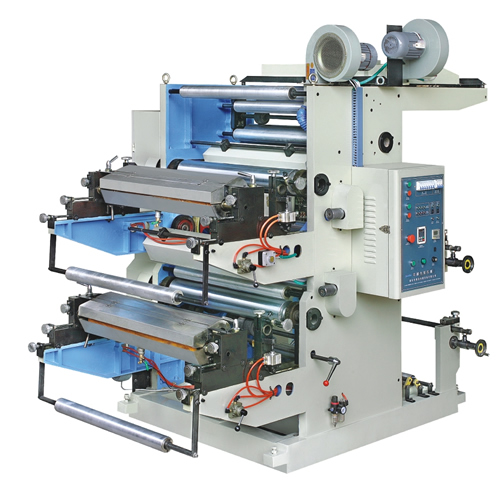

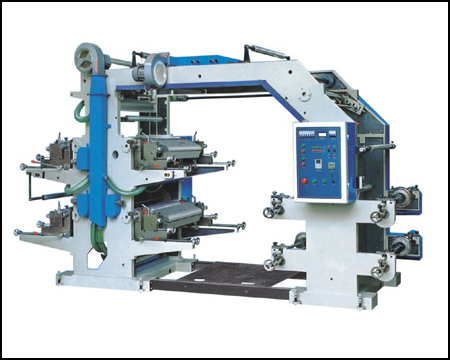

This machine is suitable for printing such packing material as polyethylene, polypropylene plasic bag, glass paper and web, etc. And it is the ideal printing equipment for producing paper packing abg for food, supermarket handbag, and clothes bag etc.
1. Easy operation, flexible starting, accurate color register.
2. The number counter can set printing quantity as required. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually (automatic type is optional device), it will automatically stir the printing ink after lifting.
4. The printing ink is transmitted by the cobweb barrel with even ink color.
5. Reliable drying system coordinate with high-speed rotation will automatically break the circuit when the machine stops.
6. 360Ā°continuous and adjustable longitudinal register device.
7. The imported frequency conversion control of motor for speed adapts to different printing speeds.
8. There are "Run"&"stop"buttons on the plate roller base and material drawing-in rack so as to make it easy for operating the machine when the plate is installed.
2.Main Technical Parameters:
|
Model |
Color no. |
Printing width |
Printing length |
Printing speed |
Thickness of plate |
Dimension of machine |
|
MK-RY2600
MK-RY2800
MK-RY21000 |
2 |
560mm
760mm
960mm |
191-1200mm |
5-50m/min |
2.28mm |
2300x1600x2200
2300x1800x2200
2300x2000x2200 |
|
MK-RY4600
MK-RY4800
MK-RY41000 |
4 |
560mm
760mm
960mm |
191-1200mm |
5-50m/min |
2.28mm |
4800x1600x2400
4800x1800x2400
4800x2000x2400 |
|
MK-RY6600
MK-RY6800
MK-RY61000 |
6 |
560mm
760mm
960mm |
191-1200mm |
5-50m/min |
2.28mm |
4800x1600x2800
4800x1800x2800
4800x2000x2800 |
Remarks: As required, printing rollers can be made with the girth up to 1200mm
Technical parameters are subject to change without prior notice!
It can be optionally equipped with auto. roller lifting device, EPC device for unwinding and auto tension control unit. In addition, printing rollers with high precision that can meet the printing speed of 5-80m/min can be specially configured as well.
