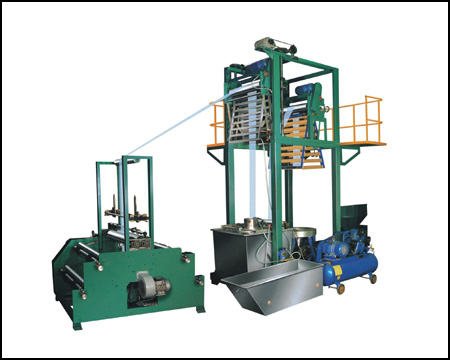

PVC Shrink Film Extrusion Machine
1.Characteristic:
With easy operation, this machine can produce PVC film with good transparency and compact shrinkage. Its products are widely used for packaging audio/video tape, toys, discs, magazines and glasses etc
eristics
2.Main Technical Parameters
|
Model |
MK-JS40 |
MK-JS50 |
MK-JS60 |
|
Material |
P.V.C |
P.V.C |
P.V.C |
|
Film thickness |
0.02-0.08 mm |
0.02-0.08 mm |
0.02-0.08 mm |
|
Film width |
70-300 mm |
150-500mm |
200-700 mm |
|
Extrusion output |
8-50 kg/h |
15-70 kg/h |
20-120 kg/h |
|
Screw diameter |
Φ45 mm |
Φ55 mm |
Φ65 mm |
|
L/D ratio of screw |
28:1 |
28:1 |
28:1 |
|
Motor power |
7.5 kw |
11 kw |
18 kw |
|
Heat power |
10 kw |
11.7 kw |
16.5 kw |
|
Die-head diameter |
Φ40/80 mm |
Φ60/120 mm |
Φ80/140 mm |
|
Die-heating power |
1.8/2.2 kw |
2/2.5 kw |
3/3.5 kw |
|
Winding capacity |
Φ400×400 mm |
Φ400×600 mm |
Φ400×800 mm |
|
Winding motor |
10×2 Kg/nm |
15×2 Kg/nm |
20×2 Kg/nm |
|
Machine weight |
1.5 T |
1.8 T |
2.5 T |
|
Machine dimension
(L×W×H) |
4×1.4×2.5 m |
6×2.5×3.5 m |
6.2×2.7×3.m |
|
