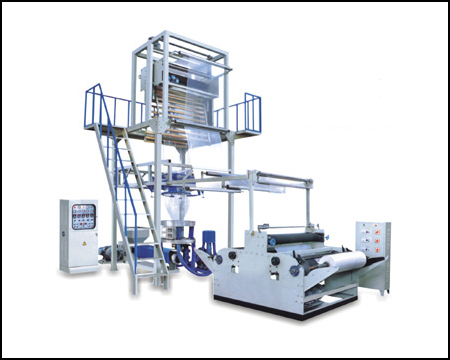

Rotary Die Film Blowing Machine
1.Characteristics: The cylinders and the screw stems of the extruder are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tension and make even and roll-changing easy.
2.Use: It is used for blowing various plastic film of low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) etc., which are widely used for packing liquid, industrial products, garments and textile etc.
3.Main Technical Parameters:
Model |
SJ-55/FM800 |
SJ-60/FM1000 |
SJ-65/FM1200 |
SJ-80/FM1500 |
SJ100/ FM2000 |
Screw diameter |
55mm |
60mm |
65mm |
80mm |
100mm |
L/D ratio of screw |
L/D28:1 |
L/D28:1 |
L/D28:1 |
L/D28:1 |
L/D28:1 |
Screw speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Max output |
50kg/h |
65kg/h |
70kg/h |
86kg/h |
140kg/h |
Power of main motor |
15kw |
18.5kw |
22kw |
30kw |
37kw |
Specification of die head |
Φ100-150mm |
Φ100-180mm |
Φ120-220mm |
Φ150-300mm |
Φ500mm |
Rotational model of machine head |
Continuous rotation |
Continuous rotation |
Continuous rotation |
Continuous rotation |
Continuous rotation |
Single-side thickness of film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Max folding width of film |
800mm |
1000mm |
1200mm |
1500mm |
2000mm |
Gross power |
26kw |
30kw |
42kw |
56kw |
88kw |
Weight of machine |
2300kg |
3000kg |
3800kg |
4600kg |
6000kg |
Overall dimension (L×W×H) |
6000x2000x 4000mm |
6500x2200x 4500mm |
6800x2400x 4800mm |
7000x2700x 5500mm |
8000x3200x 7600mm |
|
